RFM12B DIP Module 0.1" (2.54mm) Breakout Adapter

Click pictures to enlarge

Product description

   The RFM12B radio module from HopeRF is available in both DIP and SMD packages but for the hobbyist it makes sense to use the DIP package so that the module can be reused in other projects as needed. This poses a problem in that the DIP package the connector is on a 2mm pitch. This isn't very useful for those trying to develop their projects on a 2.54mm (0.1") pitch prototyping board or similar.

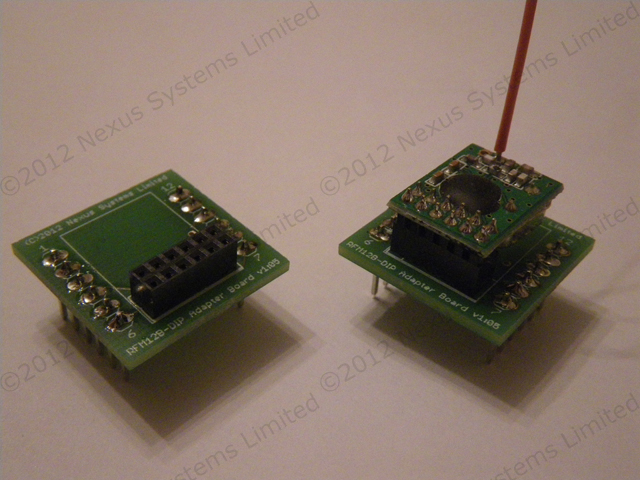

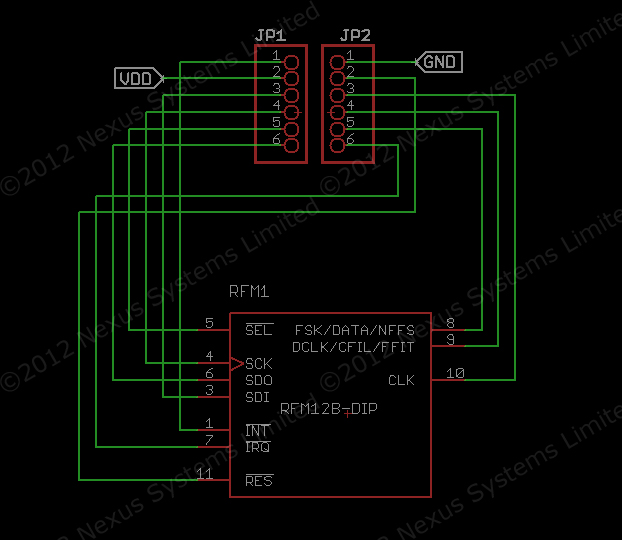

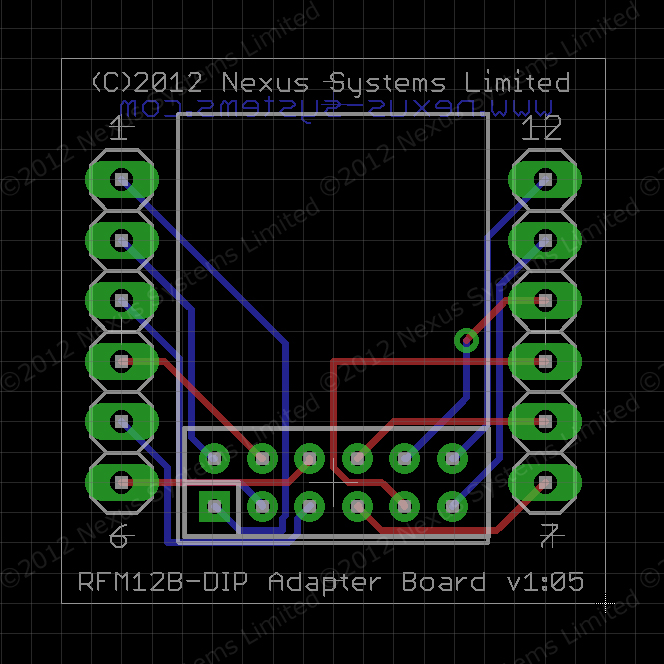

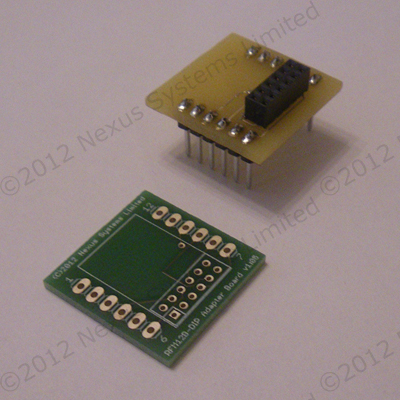

   The RFM12BADA01 breakout adapter allows testing or installation of a DIP module in a 2.54mm pitch environment without any changes to the original DIP module. The RFM12B module can be removed from the breakout adapter at any time.

   Please note that the RFM12B module is not included and can be purchased separately from the usual component suppliers.

Product specifications

• Dimensions w x d x h - mm (inch): 23.0 x 23.0 x 15 (0.9 x 0.9 x 0.59)

• Number of rows: 2

• Number of pins per row: 6

• Pin pitch - mm (inch): 2.54 (0.1)

• Row separation - mm (inch): 17.78 (0.7)
